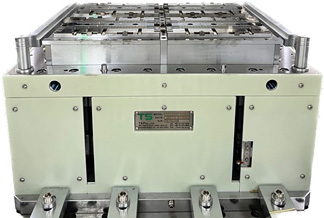

Top Transfer 方式
最多可容纳16Chases的设计
Top Transfer 方式
最多可容纳16Chases的设计
| NO | Package | Chase Q’ty | Pot Q’ty | Remark |
|---|---|---|---|---|
| 1 | TO-220IS 300CAVITY | 8 | 1 | |
| 2 | TO-220IS-4PIN 300CAVITY | 8 | 1 | |
| 3 | TO-220F 240CAVITY | 8 | 1 | |
| 4 | TO-3PN 120CAVITY | 6 | 1 | |
| 5 | TO-3PH 120CAVITY | 6 | 1 | |
| 6 | TO-126 360CAVITY | 10 | 1 | |
| 7 | TO-247 120CAVITY | 6 | 1 | |
| 8 | MR DIODE 216CAVITY | 6 | 1 | |
| 9 | CMR 216CAVITY | 6 | 1 | |
| 10 | DPAK(1) 500CAVITY | 10 | 1 | |
| 11 | TO-92 960CAVITY | 16 | 1 | |
| 12 | HY-07 480CAVITY | 12 | 1 | |
| 13 | S-Module 12CAVITY | 2 | 1 | |
| 14 | FM-20 240CAVITY | 6 | 1 | |
| 15 | FM-100 120CAVITY | 6 | 1 | |
| 16 | SG-C10 320CAVITY | 8 | 1 |
节省EMC使用量

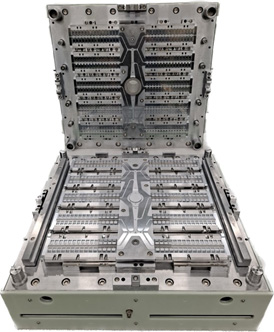

Bottom transfer 方式 (SEMI, FULL MGP)
Top/Bottom Eject pin Retract 方式
QCC(Qick Change Chase)方式设计
| NO | Package | Chase Q’ty | Pot Q’ty | Remark |
|---|---|---|---|---|
| 1 | DPAK(Dual) 576CAVITY | 8 | 2 | |
| 2 | TSM/V/6 1600CAVITY | 10 | 5 | |
| 3 | SOT-23 3840CAVITY | 8 | 8 | |
| 4 | SOT-89(Dual) 1152CAVITY | 12 | 2 | |
| 5 | SMF 2880CAVITY | 12 | 6 | |
| 6 | FLP 16 672CAVITY | 6 | 3 | |
| 7 | USM 3840CAVITY | 8 | 8 | |
| 8 | USC 4960CAVITY | 8 | 8 | |
| 9 | VSM QCC 3600CAVITY | 6 | 3 | FULL |
| 10 | TO-220F RETRACT 240CAVITY | 8 | 8 | |
| 11 | SMA 40CAVITY | 4 | 20 | FULL |
| 12 | SLA 40CAVITY | 4 | 20 | FULL |
| 13 | SCM QCC 20CAVITY | 2 | 10 | FULL |

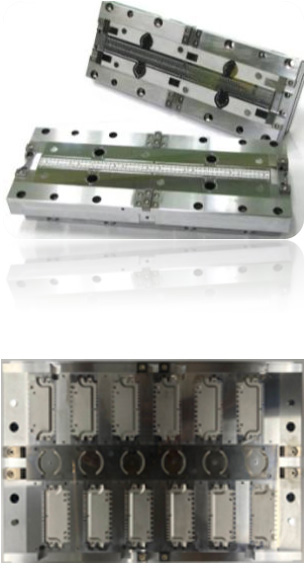

适用于Auto Mold设备
Reel to Ree. Strip Type etc.
提供高品质的Mold chase
| NO | Package | Chase Q’ty | Pot Q’ty | Remark |
|---|---|---|---|---|
| 1 | SOT23 816CAVITY | 1 | 6 | TOWA |
| 2 | USF 640CAVITY | 1 | 4 | TOWA |
| 3 | ESC 624CAVITY | 1 | 6 | TOWA |
| 4 | ESM 528CAVITY | 1 | 6 | TOWA |
| 5 | USC 624CAVITY | 1 | 6 | TOWA |
| 6 | USM 528CAVITY | 1 | 6 | TOWA |
| 7 | TFSC 528CAVITY | 1 | 6 | TOWA |
| 8 | VSC 456CAVITY | 1 | 6 | TOWA |
| 9 | TSOP6 256CAVITY | 1 | 4 | TOWA |
| 10 | TSSOP8 256CAVITY | 1 | 4 | TOWA |
| 11 | TESV6 324CAVITY | 1 | 6 | HANMI |
| 12 | USV/6 208CAVITY | 1 | 4 | HANMI |
| 13 | VSM 624CAVITY | 1 | 6 | HANMI |
| 14 | PN 3951B 544CAVITY | 3 | 5 | ASM |
| 15 | DTEP-10 288CAVITY | 3 | 3 | ASM |
| 16 | STEP-4L 576CAVITY | 3 | 6 | ASM |
| 17 | UTEP-6L 576CAVITY | 1 | 6 | TOWA |

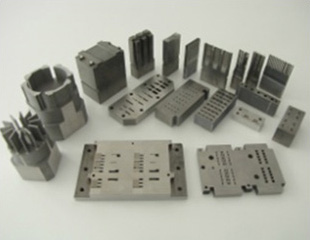

通过熟练的加工技术和Know-How，提供高品质配件

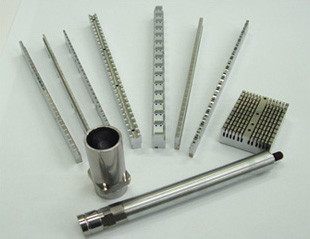

提供Stamping Parts、Trim/Form Parts等超精密配件
